Construction monitoring system

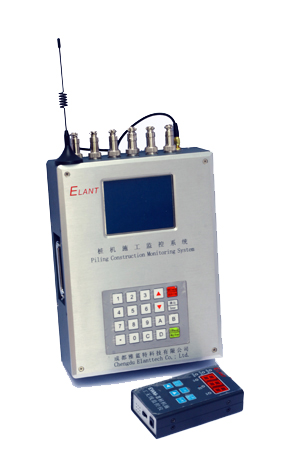

Main function: piling machinery construction process of vibroflot, sand pile machine, vibration hammer and SMW method in depth, current, volume, pressure, packing pressure, working condition (punctured / dense) parameters such as recording, control, data analysis, printing, to complete records, the whole construction process clear the corresponding data analysis software, and pile formation curve diagram. The construction process monitoring and wireless centralized control. It can be operated by wireless and I produced "EM-III type pile construction machine wireless monitor network. Through simple connection, the system can be integrated into the field work equipment to realize the monitoring and control operation of the field work equipment.

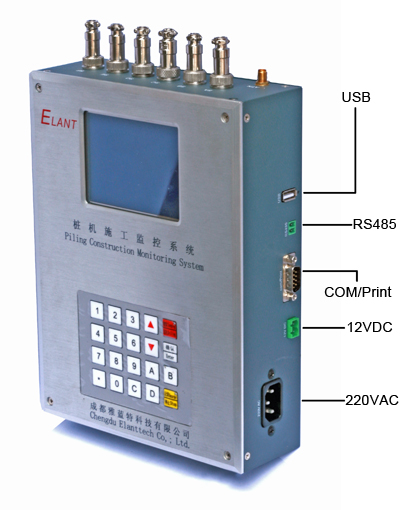

Right side interface

USB interface: data storage / read interface. Through this interface, the data can be transferred to a personal computer, through software analysis, statistics, print (see overleaf print)

RS485 interface: an external GPRS wireless data transmission module is used to realize remote real-time monitoring in different places. You can also connect the host computer wirelessly and monitor several computers simultaneously.

COM/Print port: programming online / connecting printers. When programming online, you need to use a programming line connection; when you connect to the printer, you support all ESC ports connected to the printer



Top interface

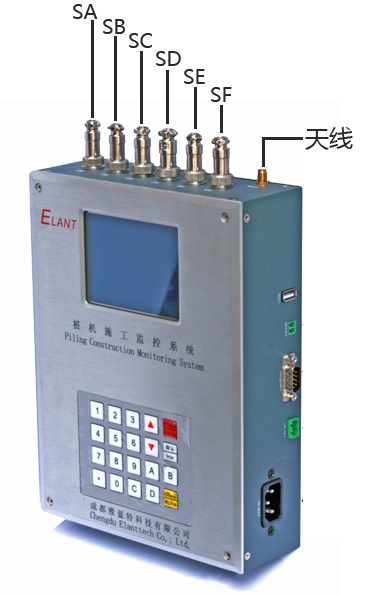

At the top of the sensor interface link: a variety of sensors, which can link depth including wireless sensor, including 4 types of current link cable and wireless sensor, the filling quantity can be set 3 kinds of sensors including wireless links, according to the site, convenient and weighing system of loader wireless links, hydraulic and pneumatic using two-wire sensor more convenient, the system in the wireless function, can be up to 16 sensors through a wireless link. It is convenient for the flexible configuration of the system. Customer service piling machine site because of cable more, two fault prone phenomenon. As many as 32 sets of equipment work at the same frequency, so the same site allows multiple frequency and multiple channel recorders to work simultaneously without interference.
